Problem Solver
Online problem solving
If you are connecting via the USB interface and are having difficulty printing, the problem may be related to your USB connection. Refer to Correcting USB Problems for details.
If your problem is not USB related, troubleshooting printer problems is best handled in two easy steps: first diagnose the problem, then apply likely solutions until the problem is fixed.
The information that you need to diagnose and solve most common problems is provided by online problem solving, the printer's control panel, the EPSON Status Monitor utility, or by running a printer operation check. Refer to the appropriate section below.
If you have a specific problem relating to print quality, a printout problem not related to print quality, or a paper feeding problem, or if the printer does not print at all, refer to the appropriate section in this chapter.
To solve a problem, you may need to cancel printing. For details, see Cancelling Printing.
You can use online problem solving to diagnose and solve most of the problems you may encounter. Refer to the appropriate section below.
The Problem Solver provides you with tips to help solve any problems you may encounter when using your printer. Depending on your location, the Problem Solver may not be accessible. In this case, you can access Technical Support Web Site instead of the Problem Solver.
If you encounter a problem, access the Problem Solver or Technical Support in one of the following ways:
Click Start, point to Programs and then to Epson, then click ESP 1280/890 Problem Solver or Technical Support.
Click Technical Support in the Status Monitor 3 dialog box.
Click Technical Support on the Main menu of the printer software.
If you access the Problem Solver and cannot solve your problem, contact Technical Support for assistance by clicking the Technical Support Web Site link in the Problem Solver.
EPSON's Technical Support Web Site provides help with problems that cannot be solved using the troubleshooting information in your printer documentation.
To access Technical Support, insert the CD in the CD-ROM drive and open the Install Printer Driver/Utility folder in the EPSON folder, and then double-click the Technical Support Web Site icon.
You can identify many common printer problems using the lights on your printer's control panel. If the lights are on or flashing, use the following table of panel light patterns to diagnose the problem, then follow the recommended corrective measures.
|
Lights |
Problem and Solution |
|
 |
Paper out |
|
|
No paper is loaded in the printer. |
Check EPSON Status Monitor 3 or EPSON StatusMonitor. Load paper in the sheet feeder, then
press the |
|
|
|
Paper jam |
|
|
Paper has jammed in the printer. |
Check EPSON Status Monitor 3 or EPSON StatusMonitor. Press the |
|
 |
Ink low |
|
|
The black or color ink cartridge is nearly empty. |
Obtain a replacement black or color ink cartridge. To determine which cartridge is nearly empty, check the ink level using EPSON Status Monitor 3 or EPSON StatusMonitor. Black: |
|
|
|
Ink out |
|
|
The black or color ink cartridge is empty or not installed. |
Replace the black or color ink cartridge with a new one. See Replacing an Ink Cartridge for details. Black: |
|
|
Wrong cartridge (black ink cartridge) |
||
|
The installed black or color ink cartridge cannot be used by this printer. |
Use the appropriate black or color ink cartridge. See Replacing an Ink Cartridge for details. Black: |
|
 |
Carriage error |
|
|
The print head carriage is obstructed by jammed paper or other foreign material and cannot return to the home position. |
Turn off the printer. Open the printer cover and remove any paper from the paper path by hand. Then, turn the printer back on. If the error does not clear, contact your dealer. |
|
 |
Unknown printer error |
|
|
An unknown printer error has occurred. |
Turn off the printer and contact your dealer. |
|
The EPSON Status Monitor utility provides status messages and a graphic display showing the current status of the printer.
If a problem occurs while printing, an error message appears in the Progress Meter window.
When the ink is out, click the How To button in the EPSON Status Monitor or Progress Meter window and EPSON Status Monitor will lead you step-by-step through the cartridge replacement procedure.
If you are unable to determine the source of the problem, performing a printer operation check can help you determine whether the problem comes from the printer or the computer.
To print a printer operation check page, follow these steps.
|
|

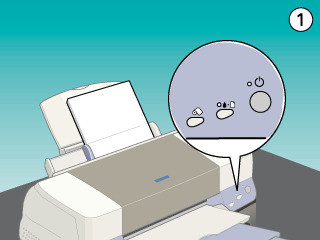

Make sure both the printer and computer are turned off. |
|
|

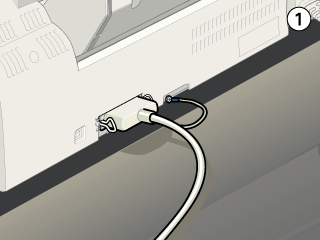

Disconnect the cable from the printer's interface connector. |
If you use the parallel interface, unlock the wire clips on both sides of the interface connector and remove the ground connector, if necessary. Then, disconnect the cable from the printer's interface connector.
|
|
Make sure that A4 or Letter size paper is loaded in the sheet feeder. |
|
|
Hold down the  maintenance button
and press the  power button to
turn on the printer. Then, release only the power
button. When the printer starts the operation check, release the maintenance button. |
Compare the quality of the printed check page with the sample shown below. If there are no print quality problems, such as gaps or missing segments in the test lines, the printer itself is fine and the problem probably lies with the printer software settings, the application settings, the interface cable (be sure to use a shielded cable), or the computer itself.
